63376Table Frame E 1800

Art. No.: 0.0.633.76
Table Frame E 1800
Table Frame E 1800
Properties of Table Frame E 1800
Line   = Work Bench System
Weight m = 40.3 kg

Back
The item work bench E – designed specifically for your production, maintenance and customer services operations.
Easy-to-use and flexible electrical table height adjustment system with memory function allows users to adjust the working height of the work bench to their needs.
The design of the work bench, with two table columns at the rear of the table and the working surface positioned on profiled steel supports offers users extremely generous legroom. The working surface can accommodate loads of up to 2,000 N.
Work bench E is available in three widths and two depths. The working surface can be supplied in four material qualities – plastic coated, high pressure laminate (HPL), HPL/ESD-safe and beech multi-ply.
You can combine work bench E with a number of useful accessories from our broad range of add-ons. These include solutions for power and data supply, work bench lighting, pivot arms, a diverse range of ESD accessories and mounting systems for PCs and tools.

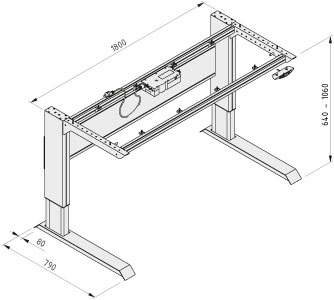

The table top can be fitted directly over the table columns (d = 0) or in front of the columns (d = 160 mm). The latter option means that Cable Duct E can then be fitted between the columns. If the work bench is to be height adjustable, the table top must be fitted in front of the columns.
Description Date Filesize
Assembly instruction 22.02.2013 485,0 kB Download
