Castor Rail 8 40x40, naturalArt. No.: 0.0.626.91
|Line||=||Work Bench System|
|Delivery Unit||=||cut-off max. 6,000 mm|
|Cross-sectional area||A||=||4.65 cm2|
|Moment of Inertia, x-axis||Ix||=||5.65 cm4|
|Moment of Inertia, y-axis||Iy||=||9.87 cm4|
|Moment of Inertia, torsional||It||=||0.39 cm4|
|Resistance Moment, x-axis||Wx||=||3.86 cm3|
|Resistance Moment, y-axis||Wy||=||4.93 cm3|
|Weight, spec. Length||m||=||1.28 kg/m|
|Saw Cut for Small Cross-Sections||0.0.026.30||1 pce.|
|Video||Titel / Inhalt||Größe||Format||Download|
item Interlinking work benches ST
Today, flexible, cost-effective and ergonomic work benches are more important than ever in the value-added chain.
|Shelf trolley with roller conveyor - Article EX-01042Shelf trolley made from item components – outside grooves closed for easier cleaning, coloured roller conveyors on inside.
|Work bench interlinking with return - Article EX-01046For the straightforward interlinking of working processes with a rapid flow of materials.
|Work bench interlinking - Article EX-01080This work bench scenario is one example of how three workstations can be interlinked using an integrated material picking rack. Production parts move rapidly along roller conveyors between work benches to precisely where they are needed.

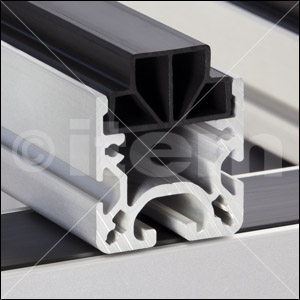

The Castor Rail itself is inherently stable and, thanks to the use of Profile 5 and 8 grooves, is easy to fasten, adjust and fit with a railing – ideal for keeping your workpieces on track. The added benefits for Kanban shelves: coloured castors mark fill levels, castor brakes make sure your workpieces reach the removal station at the right speed and Caps can be used to fit impact buffers or cushions to the Castor Rail.
Simply push the inserts into the rail to build your ideal roller conveyor.
Caps secure the ends.
