| Properties of Drawer Unit, Mounting Frame, grey similar to RAL 7042 | |||
|---|---|---|---|
| Line | = | Work Bench System | |
| Property | = | grey similar to RAL 7042 | |
| Weight | m | = | 7 kg |
Steel sheet
Two parts
Fastening Set for attaching to Drawer Unit
Two parts
Fastening Set for attaching to Drawer Unit
Back
Robust Drawer Units made from powder-coated steel sheet (RAL 7042) in three different heights. The units can be attached to the work bench frame or fixed in place under the work surface.
The tallest Drawer Unit, the S4 H650, can also be located on a Base and used as a free-standing unit. Any table top can then be attached to the top of the unit - using the through holes.
The tallest Drawer Unit, the S4 H650, can also be located on a Base and used as a free-standing unit. Any table top can then be attached to the top of the unit - using the through holes.

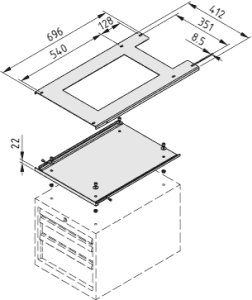

The Mounting Frame allows the Drawer Units to be screwed to and suspended from table structures. The Mounting Frame consists of two parts, one of which is screwed to the through holes on the top of the Drawer Unit and the other to the underside of the table. The Drawer Unit can then simply be slid in and removed again if necessary.
