| Properties of Universal-Butt-Fastening Set 12, bright zinc-plated | |||
|---|---|---|---|
| Line | = | line 12 | |
| Property | = | bright zinc-plated | |
| Torque, bright zinc-plated | Mbz-p | = | 60 Nm |
| Weight | m | = | 200 g |

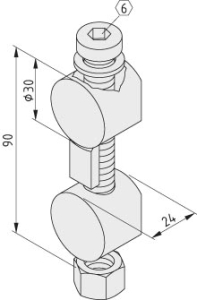

2 Universal Fastener 12, die-cast zinc
1 Hexagon Socket Head Cap Screw DIN 7984-M12x70, St
1 washer DIN 433-13, St
1 Hexagon Nut DIN 934-M12, St
1 Hexagon Socket Head Cap Screw DIN 7984-M12x70, St
1 washer DIN 433-13, St
1 Hexagon Nut DIN 934-M12, St
Back

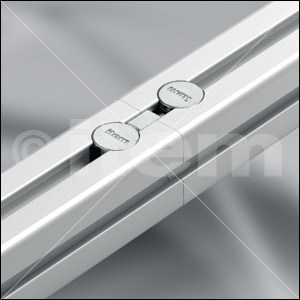

The Universal-Butt-Fastening Sets can be used to connect the end faces of two profiles from the same Line. Universal-Butt-Fasfening Sets should always be used
in pairs.
Depending on the profile size and load, several pairs may be necessary. Connection processing of the profiles is the same as for the Universal-Fastening Sets.
Universal-Fastening Sets should always be used in pairs.
| Services | Article-Id.: | Quantity |
|---|---|---|
| Connection Processing, Stepped Bore D30x24 | 0.0.015.03 | 1 pce. |
| Tools | Article-Id.: | Quantity |
|---|---|---|
| Ball-Headed Key 8 A/F | 0.0.480.34 | 1 pce. |
| L-Key 8 A/F | 0.0.007.12 | 1 pce. |
| Key Insert 8 A/F-1/2″ | 0.0.007.47 | 1 pce. |
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Technical documentation | 23.02.2010 | 174,3 kB | Download |
