| Properties of Tool Holder 8 | |||
|---|---|---|---|
| Line | = | Work Bench System line 8 |
|
| Weight | m | = | 40 g |
10 loops, PA-GF, black
10 compression springs
10 compression springs
Back

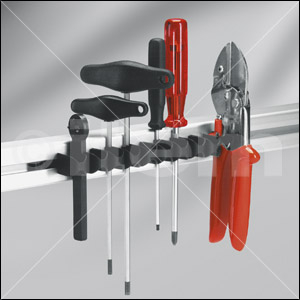

Tool Holder 8 can be fitted at any point in the groove of Profiles 8. Its spring-loaded elements made of flexible plastic enclose any inserted tools and pencils and
hold them securely. The Tool Holder can be extended at will by simply adding further elements. The clamping force of the Tool Holder can also be varied by choosing the appropriate
pre-tensioning.
Installation sequence:
1. Insert the loop into the groove
2. Turn it by 90°
3. Insert the spring into the groove
4. Secure the Tool Holder in the groove,
e.g. using T-Slot Nut 8 St/PA M6 and grub screw DIN 914-M6x8.
1. Insert the loop into the groove
2. Turn it by 90°
3. Insert the spring into the groove
4. Secure the Tool Holder in the groove,
e.g. using T-Slot Nut 8 St/PA M6 and grub screw DIN 914-M6x8.
