| Properties of T-Slot Slider 8 | |||
|---|---|---|---|
| Line | = | line 8 | |
| Weight | m | = | 24 g |
T-Slot Slider, POM, black
Adapter washer DIN 988-8x14x1, St, stainless
T-Slot Nut V 8 St M8, bright zinc-plated
Countersunk Screw DIN 7991-M8x13, St, bright zinc-plated
Adapter washer DIN 988-8x14x1, St, stainless
T-Slot Nut V 8 St M8, bright zinc-plated
Countersunk Screw DIN 7991-M8x13, St, bright zinc-plated
Back
The T-Slot Slider enables elements to slide in the profile grooves while simultaneously rotating around the fastening point.
It can be used to construct simple guides for various components, e.g. keyboard pull-outs, panels for operating instructions, or simple lifting, folding and sliding doors in Line 8 profile grooves.
Construction of a folding door with T-Slot Sliders
a = 10 mm
F = 60 N
F = 60 N
Unrestricted rotation of the T-Slot Slider around the hub also compensates for possible alignment errors.

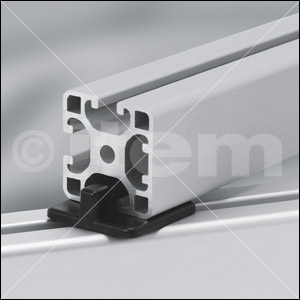

T-Slot Slider 8 can also be fitted to the end faces of Profiles 8 40x40.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Slide Stop 8 | 0.0.651.37 | 1 set |
