| Properties of Castor Ball Insert ESD | |||
|---|---|---|---|
| Line | = | Work Bench System | |
| Antistatic | = | Yes | |
| Force max | Fmax. | = | 100 N |
| Weight | m | = | 50 g |
Castor Ball D24, St
Housing, PA-GF, black
Housing, PA-GF, black
Back

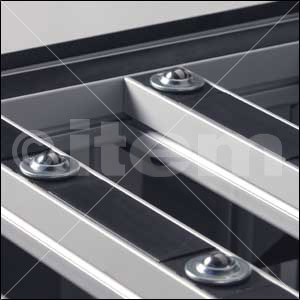

Castor Ball Sets and Brush Sets are designed for the table tops that connect to conveyor lines and racks – for inward and outward transfer or for the careful warehousing of your goods. Castor Ball Insert ESD is fitted to Castor Rail 8.
The wide range of inserts available for Castor Rail 8 40x40 make it a true all-rounder:
a: Castor Ball Inserts ESD
b: Castor Inserts D30 with Flanged Wheel, ESD-safety optional
c: Castor Rail 8 40x40, Brake
d: Roller Inserts 4xD11
e: Brush Inserts ESD
f: Slide Strip Wedge Insert ESD
g: Castor Rail 8 40x40, Slide Strip ESD – raised installation
h: Castor Rail 8 40x40, Slide Strip ESD – low installation
TIP
To install Castor Ball Sets or Brush Sets, simply drill a recess (⌀ 25 mm, 12 mm deep) into the table top using a Forstner bit.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Castor Rail 8 40x40, natural | 0.0.626.91 | cut-off max. 6000 mm |
