| Properties of Clamp-Multiblock 8 PA, grey | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | PA_GF | |
| Property | = | grey | |
| Force max | Fmax. | = | 250 N |
| Height | h | = | 20 mm |
| Width | b | = | 25 mm |
| Weight | m | = | 10 g |
Basic unit and securing clip
Back

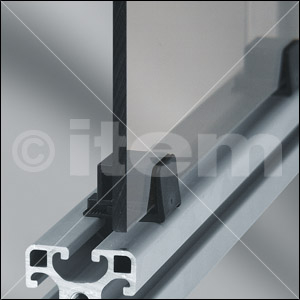

Clamp Multiblocks secure panel elements in profile frames without need for further machining.
Clamp Multiblock PA is inserted into the profile groove; a locating lug secures lightweight panel elements of different thicknesses, such as cladding panels, panel elements made from Acrylic Glass, etc.
Clamp Multiblock PA is inserted into the profile groove; a locating lug secures lightweight panel elements of different thicknesses, such as cladding panels, panel elements made from Acrylic Glass, etc.
The securing clip can be detached again by means of a screwdriver.
The basic unit is twisted into the groove, the panel element fitted and clamped in position by means of the securing clip.
Two mounting dimensions are available depending on the orientation of the Multiblock.
