| Properties of Universal-Fastening Set (Profile St) 8 40, stainless | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | St | |
| Property | = | stainless | |
| Torque, stainless | Mstainl. | = | 8 Nm |
| Weight | m | = | 65 g |
Connecting pin D12x40 2D6
2 Button-Head Screws ISO 7380-M6x32, tin-plated
2 T-Slot Nuts (Profile St) 8 M6
2 Caps, PA black
2 Button-Head Screws ISO 7380-M6x32, tin-plated
2 T-Slot Nuts (Profile St) 8 M6
2 Caps, PA black
Back

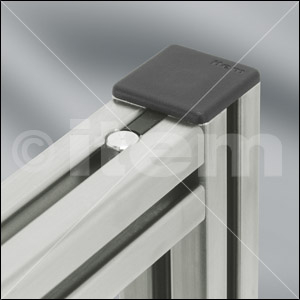

The Universal-Fastening Set (Profile St) 8 40 creates a right-angled profile connection for Profiles St 8 with the option of subsequent movement along the profile groove or subsequent insertion of struts in profile frames that are already closed.
This means that it is not necessary to specify the position of the fastening point in advance.
This means that it is not necessary to specify the position of the fastening point in advance.
The pre-tensioning force of the Universal-Fastening Set (Profile St) 8 is applied by two screws which are tightened from the profile groove. They are screwed into T-Slot Nuts (Profile St) 8 M6, which are inserted in the opposite profile groove.
The fastener’s counterpart takes the form of a pin with two through holes, which is inserted in one of the cross-holes (⌀ 12.2 mm) in the Profile.
The caps are also used to fix the positions of the screws during assembly.
The caps are also used to fix the positions of the screws during assembly.
| Services | Article-Id.: | Quantity |
|---|---|---|
| Connection Processing Profile St, Drilled Hole D12.2 | 0.0.603.81 | 1 pce. |
| Tools | Article-Id.: | Quantity |
|---|---|---|
| Drill D12.2 | 0.0.602.12 | 1 pce. |
| L-Key 4 A/F | 0.0.440.74 | 1 pce. |
| Ball-Headed Key 4 A/F | 0.0.406.60 | 1 pce. |
