| Properties of Profile 6 D30 4N, natural | |||
|---|---|---|---|
| Line | = | Line D30 | |
| Material | = | Al, anodized | |
| Property | = | natural | |
| BIEGUNGSRECHNER_MATERIAL | = | ALUMINIUMPROFIL | |
| Cross-sectional area | A | = | 2.98 cm2 |
| Moment of Inertia, x-axis | Ix | = | 1.89 cm4 |
| Moment of Inertia, y-axis | Iy | = | 1.89 cm4 |
| Moment of Inertia, torsional | It | = | 2.11 cm4 |
| Resistance Moment, x-axis | Wx | = | 1.26 cm3 |
| Resistance Moment, y-axis | Wy | = | 1.26 cm3 |
| Weight, spec. Length | m | = | 0.80 kg/m |
Back
A fully rounded solution
The Tubes and Profiles in Line D30 have one thing in common – their basic diameter of 30 mm makes solutions incredibly rigid. It also corresponds to the modular dimension of item Profile 6, producing a whole range of opportunities for combination.
The Tubes and Profiles in Line D30 have one thing in common – their basic diameter of 30 mm makes solutions incredibly rigid. It also corresponds to the modular dimension of item Profile 6, producing a whole range of opportunities for combination.
Universal and flexible – Tube D30 and Profile Tube D30 form the basic structure of designs. Simply cut to size and fit together using the fastening elements.
The design of Profile Tube D30 ensures perfect profile alignment every time, making tube connection very straightforward.

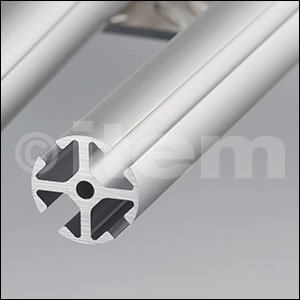

Profiles 6 D30 go even further, with four true Profile 6 grooves enabling universal use of the fastening elements in Line 6. These Profiles can be combined with Tube D30 and Profile Tube D30 as and when required.
The design of Profile Tube D30 ensures perfect profile alignment every time, making tube connection very straightforward.
Profiles 6 D30 go even further, with four true Profile 6 grooves enabling universal use of the fastening elements in Line 6. These Profiles can be combined with Tube D30 and Profile Tube D30 as and when required.
The Tubes and Profiles in Line D30 have one thing in common – their basic diameter of 30 mm makes solutions incredibly rigid. It also corresponds to the modular dimension of item Profile 6, producing a whole range of opportunities for combination.
Universal and flexible – Tube D30 and Profile Tube D30 form the basic structure of designs. Simply cut to size and fit together using the fastening elements.
The design of Profile Tube D30 ensures perfect profile alignment every time, making tube connection very straightforward.
The design of Profile Tube D30 ensures perfect profile alignment every time, making tube connection very straightforward.
Profiles 6 D30 go even further, with four true Profile 6 grooves enabling universal use of the fastening elements in Line 6. These Profiles can be combined with Tube D30 and Profile Tube D30 as and when required.
Permissible loads for profile designs
Caps for the ends of Profiles and Tubes are available in two variants – elegant grey and a black, electrostatically dissipative version. This makes it easy to identify the intended application of a Cap.
Any covered grooves on a Profile can be opened up as and when required, thereby allowing you to insert panelling and fastening elements.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Cap 6 D30, grey similar to RAL 7042 | 0.0.634.45 | 1 pce. |
| Cap 6 D30 ESD, black, similar to RAL 9005 | 0.0.637.03 | 1 pce. |
| Tube End Cap D30, grey | 0.0.643.96 | 1 set |
| Tube End Cap D30 ESD, black | 0.0.644.65 | 1 set |
| Services | Article-Id.: | Quantity |
|---|---|---|
| Saw Cut for Small Cross-Sections | 0.0.026.30 | 1 pce. |
