| Properties of Central-Fastening Set P 8 | |||
|---|---|---|---|
| Line | = | line 8 | |
| Weight | m | = | 44 g |
Clamping pin, St, bright zinc-plated
T-Slot Nut V 8 St M8, bright zinc-plated
Threaded sleeve with bore, St, bright zinc-plated
Grub screw M10, St, bright zinc-plated
Cap, PA, grey
T-Slot Nut V 8 St M8, bright zinc-plated
Threaded sleeve with bore, St, bright zinc-plated
Grub screw M10, St, bright zinc-plated
Cap, PA, grey
Back
Special variant of Central-Fastening Set 8 for connecting parallel Line 8 profiles. It enables individual, inherently stable partitions or partition elements to be rowed together quickly without time-consuming alignment procedures.
Unevenness in the floor can be compensated for by adjusting the height of the T-Slot Nut in the profile groove.
Unevenness in the floor can be compensated for by adjusting the height of the T-Slot Nut in the profile groove.
Profile processing: To accommodate the fastener sleeve, a ⌀14.2 mm counterbore is drilled into the side of one of the profiles being connected (using Step Drill 0.0.492.60) along with a ⌀8.2 mm fastening hole located perpendicular to this.

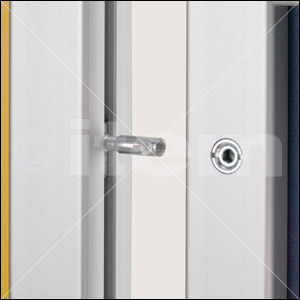

T-Slot Nut V 8 St M8 is fitted into the facing groove of the second profile and the clamping pin is screwed into this T-Slot Nut as far as the marking.
After the clamping pin has been inserted into the fastener sleeve, the profile connection is tightened with an M10 grub screw (tightening torque M = 15 Nm).
N.B.: At least 2 grooves always remain free for fitting panel elements into the profile grooves. Frame elements can also be connected to each other at an angle of 90° by positioning Central-Fastening Set P 8 appropriately.
| Tools | Article-Id.: | Quantity |
|---|---|---|
| Step Drill, Mitre Connection 8 | 0.0.492.60 | 1 pce. |
