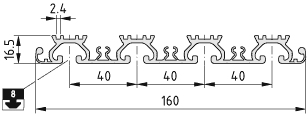

| Properties of Support Profile 160 with grooves 8, natural | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | Al, anodized | |
| Property | = | natural | |
| Width | b | = | 160 mm |
| Cross-sectional area | A | = | 8.27 cm2 |
| Weight, spec. Length | m | = | 2.23 kg/m |
Back

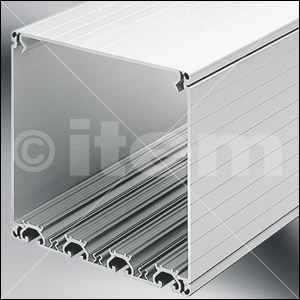

160x160 mm conduit using Support Profile 160 with grooves as a base.
Wall Profiles and Lid Profiles can be secured in position by means of Self-Tapping Screw St 4.2x9.5.
The Support Profiles must be provided with a bore ⌀ 3.5 mm in the marking groove for this purpose.
The screw connection creates a conductive bond between the conduit elements.
The Support Profiles must be provided with a bore ⌀ 3.5 mm in the marking groove for this purpose.
The screw connection creates a conductive bond between the conduit elements.
| Services | Article-Id.: | Quantity |
|---|---|---|
| Saw Cut for Medium Cross-Sections | 0.0.026.66 | 1 pce. |
