Frame Profile 8 40x20, natural

Art. No.: 0.0.616.95
Properties
Line   = Work Bench System
line 8
Material   = Al, anodized
Property   = natural
Delivery Unit   = Cut-off max. 6,000 mm
Weight, spec. Length m = 880 g/m
Accessories for Frame Profile 8 40x20, natural
Product Article-Id.: Quantity
Corner-Fastening Set Frame 8 40x20 Corner-Fastening Set Frame 8 40x20 0.0.618.61 1 set
Retaining Cord D6, grey Retaining Cord D6, grey 0.0.622.12 cut-off max. 20 m
Services Article-Id.: Quantity
Saw Cut for Small Cross-Sections 0.0.026.30 1 pce.

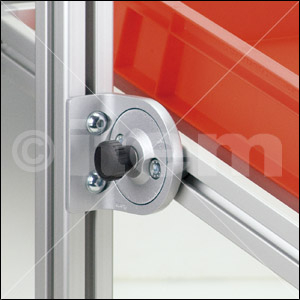

Shelving at the workplace and on the material trolley ensures parts are available to users when they need them. Workpiece carriers, enclosed in a frame, may be employed on transfer units to protect the goods being transported.

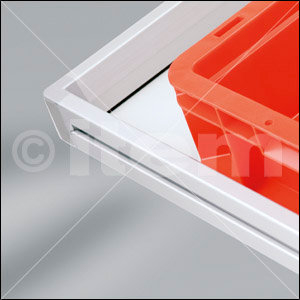

Frame Profile 8 40x20 provides a stable means of holding and securing a plastic or metal panel element (up to 4 mm thick). The corner fasteners connect seamlessly with the frame profiles and enable panels to be inserted easily across both without need for processing. After the frame has been closed, the panel is secured with a flexible Retaining Cord to prevent movement.
Installation tip: It is best to moisten the Retaining Cord with soapy water to ensure it can be pressed in easily.
An external Profile 8 groove can be used to secure the frame profile to the basic frame of the table or material trolley, e.g. using Angle Locking Bracket 8 80x40.
The Corner-Fastening Set Frame is screwed into the screw channels in the frame profile using the self-tapping screws without any need for profile processing (M = 2 Nm).
The cut-off dimensions of panel elements (LA, LB) are dependent on the thickness s.
Calculating the profile cut-off length:
LPA = A - 44 mm
LPB = B - 44 mm
