| Properties of Double Pivot Arm 8 695 heavy-duty | |||
|---|---|---|---|
| Line | = | Work Bench System line 8 |
|
| Material | = | Al, anodized | |
| Weight | m | = | 3.7 kg |
Profiles 8 40x40 3N light
2 Standard Swivel Joints (mounting joints)
Double Swivel Joint 40 (middle joint)
End Swivel Joint
Connecting cover, PA, grey
3 Connecting Plates, Al, natural
Button-Head Screw M8x22, St, bright zinc-plated
Notes on Use and Installation
2 Standard Swivel Joints (mounting joints)
Double Swivel Joint 40 (middle joint)
End Swivel Joint
Connecting cover, PA, grey
3 Connecting Plates, Al, natural
Button-Head Screw M8x22, St, bright zinc-plated
Notes on Use and Installation
Back

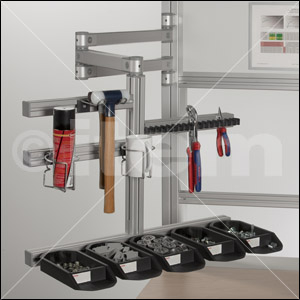

Double Pivot Arm 8 695 heavy-duty – move even heavy loads safely!
The heavy-duty Double Pivot Arm is connected to a single Pivot Arm via a Double Swivel Joint in the middle. The two Standard Swivel Joints can be connected to any Profiles 8. The heavy-duty Double Pivot Arm should only be fitted to vertical profile grooves.
The Pivot Arm can reach approximately 695 mm. It can accommodate a maximum (vertical) load of 140 N.
The End Swivel Joint can be rotated through 360° for maximum versatility.
The heavy-duty Double Pivot Arm is connected to a single Pivot Arm via a Double Swivel Joint in the middle. The two Standard Swivel Joints can be connected to any Profiles 8. The heavy-duty Double Pivot Arm should only be fitted to vertical profile grooves.
The Pivot Arm can reach approximately 695 mm. It can accommodate a maximum (vertical) load of 140 N.
The End Swivel Joint can be rotated through 360° for maximum versatility.
The connection can be made with either a horizontal or vertical profile groove. An end-face connection with Profiles is also possible.
All the joints can be rotated through 360° and their frictional moment can be adjusted.
All the joints can be rotated through 360° and their frictional moment can be adjusted.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Parts Container 80x40, black | 0.0.432.73 | 1 pce. |
| Parts Container 120x40, black | 0.0.432.74 | 1 pce. |
| Parts Container 160x80, black | 0.0.432.75 | 1 pce. |
| Monitor Adapter 8 VESA 75-100 PA | 0.0.615.48 | 1 set |
| Frame Profile 8 40x20, natural | 0.0.616.95 | cut-off max. 6000 mm |
| Corner-Fastening Set Frame 8 40x20 | 0.0.618.61 | 1 set |
| Retaining Cord D6, grey | 0.0.622.12 | cut-off max. 20 m |
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Assembly instruction | 23.05.2011 | 359,3 kB | Download |
