| Properties of Limit-Switch Holder D18 | |||
|---|---|---|---|
| Line | = | line 8 | |
| Height | h | = | 24 mm |
| Width | b | = | 20 mm |
| Weight | m | = | 23 g |
Housing and anti-torsion block, PA-GF, black
Cap Screw DIN 912-M6x28, St, bright zinc-plated
Cap Screw DIN 912-M6x28, St, bright zinc-plated
Back

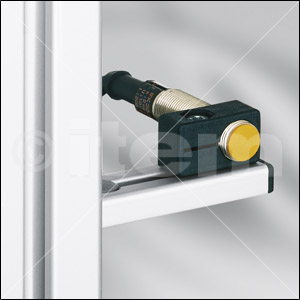

For fastening Limit Switches to profiles or other components.
When an anti-torsion block is not used, the Limit-Switch Holders can be secured to all profile Lines.
When the anti-torsion block is used, Limit-Switch Holders D18 and 20 can be attached in 10° increments relative to the Profile 8 groove. Without anti-torsion blocks, attachment is possible at any angle.
For fastening Limit-Switch Holders D18 and D20 with Hexagon Socket Head Cap Screw DIN 912-M6 and T-Slot Nut of the corresponding Line.
Screw M6x28 comes in a special length for fastening to Line 8 profiles.
Screw M6x28 comes in a special length for fastening to Line 8 profiles.
