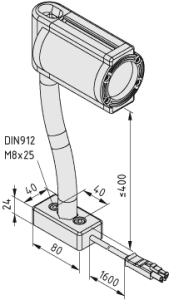

| Properties of Lamp 35W with Flexible Tube | |||
|---|---|---|---|
| Line | = | line 8 | |
| Power | P | = | 35 W |
| Voltage (DC) | U | = | 12 V DC |
| Weight | m | = | 1.22 kg |
ON/OFF switch
Halogen reflector 35W
Protective panel of hardened glass
Protection: IP 67, EN 60529
Protection class III
Halogen reflector 35W
Protective panel of hardened glass
Protection: IP 67, EN 60529
Protection class III
Back
Dust-tight and water-tight industrial spotlight (IP 67) in a low-voltage (12 V) design.
The aluminium housing for the Light Fitting is equipped for fastening with Profile 8 grooves. A Hinge, heavy duty or other fastening elements can be used to integrate the Lamp 35W into machines, fixtures and equipment.
The aluminium housing for the Light Fitting is equipped for fastening with Profile 8 grooves. A Hinge, heavy duty or other fastening elements can be used to integrate the Lamp 35W into machines, fixtures and equipment.
Lamp 35W comes with a 2 m connecting cable, which is linked to the electronic transformer using a coded system plug.
Up to 3 Lamps can be attached to this power pack via the distributor block.
Up to 3 Lamps can be attached to this power pack via the distributor block.
The voltage supply to the electronic transformer is provided via the Connecting Cable, Socket / Earthed Plug (0.0.417.42) to a 230 V safety contact socket.
The housing of Lamp 35W can be fitted with Handle PA 80.
Fixed Lamp 35W, adjustable with Hinge 8 40x40, heavy-duty with Clamp Lever.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Lamp 35W, Halogen Reflector | 0.0.417.77 | 1 pce. |
| Lamp 35W, 3-Way Distributor Block | 0.0.417.74 | 1 pce. |
| Electronic Transformer 105W | 0.0.417.75 | 1 pce. |
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Assembly instruction | 23.02.2010 | 38,6 kB | Download |
