| Properties of Lifting-Door Guide Set 8 | |||
|---|---|---|---|
| Line | = | line 8 | |
| Weight | m | = | 94 g |
Housing halves, POM, black
Steel insert, St, bright zinc-plated
Button-Head Screw ISO 7380-M6x25, St, bright zinc-plated
T-Slot Nut 8 St M6, bright zinc-plated
3 Cap Screws DIN 912-M6x25, St, bright zinc-plated
3 Hexagon Nuts DIN 934-M6, St, bright zinc-plated
Steel insert, St, bright zinc-plated
Button-Head Screw ISO 7380-M6x25, St, bright zinc-plated
T-Slot Nut 8 St M6, bright zinc-plated
3 Cap Screws DIN 912-M6x25, St, bright zinc-plated
3 Hexagon Nuts DIN 934-M6, St, bright zinc-plated
Back

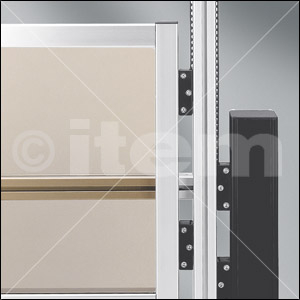

Lifting-Door Guide Set 8 facilitates the construction of lifting doors consisting of frame elements with various panel elements which are located between two vertical profiles.
Between the lifting door and the profile, there must be a space of 25 mm on each side.
Between the lifting door and the profile, there must be a space of 25 mm on each side.
One or two counter-weights which are connected to the lifting door using Timing-Belt Reverse Units and Timing Belts (Section 8.2 Mechanical Drive Elements) compensate for the weight of the door. The lifting door and counter-weights are guided in the grooves of the Stand Profiles by means of Guide Sets.
In addition, the Guide Sets connect the Timing Belt to the lifting door and counter-weight. As a rule, four Lifting Door Guide Sets are required for the lifting door and two for each counter- weight. The size of the counter-weight is determined by the weight of the lifting door. Whether one or two counter-weights are installed depends on the door weight and the ratio between the door width and door height, i.e. the aspect ratio.
Any suitable mass can be used as a counter-weight, (for example square steel bar or filled conduit elements). The counter-weights are screw attached to the Lifting-Door Guide Set which guides them along the profile groove.
