| Properties of Lifting-Door Chain Reverse Unit E | |||
|---|---|---|---|
| Line | = | line 8 | |
| Weight | m | = | 1.02 kg |
Chain Reverse Unit, Al, anodized
Reversing wheel, slide bearing, PA
Chain length in Reverse Unit 182.3 mm
3 Hexagon Socket Head Cap Screws DIN 912-M8x80,
St, bright zinc-plated
Notes on Use and Installation
Reversing wheel, slide bearing, PA
Chain length in Reverse Unit 182.3 mm
3 Hexagon Socket Head Cap Screws DIN 912-M8x80,
St, bright zinc-plated
Notes on Use and Installation
Back

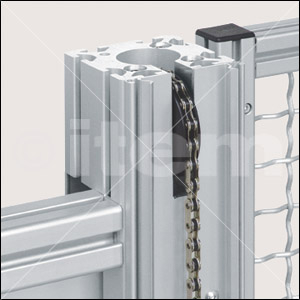

Lifting-Door Chain Reverse Unit E
Inexpensive Lifting-Door Chain Reverse Unit for manually actuated lifting doors. Plastic wheel with slide bearing, suitable for doors up to 20 kg.
Lifting-door system with circulating chain
A special design for ensuring precise movement of lifting door and counterweight.
The motor can drive the lifting door at any Chain Reverse Unit.
Where motors are fitted with brakes, a counterweight is not needed.
The motor can drive the lifting door at any Chain Reverse Unit.
Where motors are fitted with brakes, a counterweight is not needed.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Chain 1/2″ | 0.0.465.17 | cut-off max. 25 m in 1″ intervals |
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Assembly instruction | 10.02.2011 | 2.300,5 kB | Download |
