| Properties of Lifting-Door Chain Connector | |||
|---|---|---|---|
| Line | = | line 8 | |
| Weight | m | = | 65 g |
Chain fastening, St, bright zinc-plated
Washers, St, bright zinc-plated
Chain pin with lock washer, St, bright zinc-plated
Countersunk Screw DIN 7991-M6x30, bright zinc-plated
Washers, St, bright zinc-plated
Chain pin with lock washer, St, bright zinc-plated
Countersunk Screw DIN 7991-M6x30, bright zinc-plated
Back

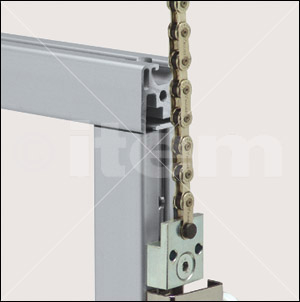

Lifting-Door Chain Connector
For securing the chain to the lifting-door frame. It is screwed to the fastening elements of the Lifting-Door Bearing Sets.
Lifting-door system with circulating chain
A special design for ensuring precise movement of lifting door and counterweight.
The motor can drive the lifting door at any Chain Reverse Unit.
Where motors are fitted with brakes, a counterweight is not needed.
The motor can drive the lifting door at any Chain Reverse Unit.
Where motors are fitted with brakes, a counterweight is not needed.
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Assembly instruction | 10.02.2011 | 2.300,5 kB | Download |
