| Properties of Hinge 8 Al FP0-270° light | |||
|---|---|---|---|
| Line | = | line 8 | |
| Weight | m | = | 128.0 g |
Hinge Leaf, Al, anodized, natural
2 T-Slot Nuts V 8 St M6, bright zinc-plated
2 Countersunk Screws DIN 7991-M6x14, St, bright zinc-plated
Hinge Al light, Pin Set D6
Notes on Use and Installation
2 T-Slot Nuts V 8 St M6, bright zinc-plated
2 Countersunk Screws DIN 7991-M6x14, St, bright zinc-plated
Hinge Al light, Pin Set D6
Notes on Use and Installation
Back

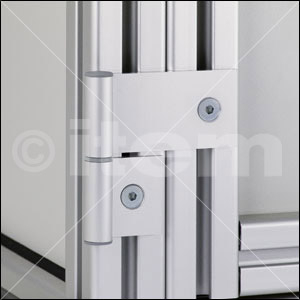

Hinges Al FP0-270° light for Lines 6 and 8 are ideal for constructing doors with an opening angle of 270°. The door can consist of a frameless panel or a profile frame with panel element. The anti-torsion feature of the hinge engages in the outer groove of the upright profile and prevents the door leaf from sinking down.
Hinges Al FP0-270° light are surface-mounted. This enables doors to be fitted to the fixed outer frame with virtually no door gap.
Hinges Al FPO-270° light are supplied in sets with screws and T-Slot Nuts for securing to profiles of the relevant line.

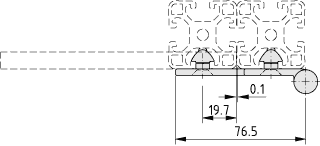

All Hinges Al light have the connection dimensions shown here irrespective of the line and variant.
Fmax. = 500 N
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Assembly instruction | 04.09.2012 | 844,9 kB | Download |
