| Properties of Profile D25, natural | |||
|---|---|---|---|
| Line | = | line 8 line X |
|
| Material | = | Al, anodized | |
| Property | = | natural | |
| Cross-sectional area | A | = | 2.32 cm2 |
| Weight, spec. Length | m | = | 0.57 kg/m |
Back

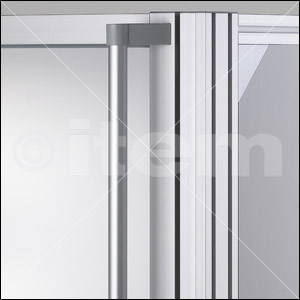

Grip System X D25 consists of Hand Grip Elements X D25 and cylindrical Profile D25. These components can be used to create handles of any length, but the distance between two Hand Grip Elements must not exceed 1000 mm.
Profile sections D25 are inserted in Hand Grip Element X D25 from one or both sides. Any hole not required is covered using the Cap provided.
M6x20 threads are provided in the core bore of the Profile D25 which is then press-fitted in the correct position in the Hand Grip Elements. All M6 screw connections of Hand Grip Element X D25 should be tightened with a torque of M = 4 Nm.
| Services | Article-Id.: | Quantity |
|---|---|---|
| Saw Cut for Small Cross-Sections | 0.0.026.30 | 1 pce. |
