| Properties of Table-Top Fastening Bracket D30, bright zinc-plated | |||
|---|---|---|---|
| Line | = | Line D30 | |
| Property | = | bright zinc-plated |
Sheet Material, St, bright zinc-plated
2 Button-Head Screws, self-tapping St 3.9x16, TX20
2 Button-Head Screws, self-tapping St 3.9x16, TX20
Back

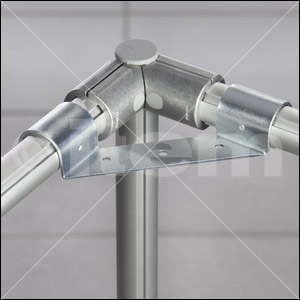

The rapid solution for supporting horizontal panels. Position a Table-Top Fastening Bracket in each corner of a D30 frame and place on top any panel material – that’s all it takes to create load-carrying shelving for storage systems or workpiece carriers, etc.
If required, the Table-Top Fastening Bracket D30 can also be screwed to the panel, thereby further stabilising the frame.
The table top is simply slotted into a frame made of Tubes D30 or Profiles D30.
Fasteners D30 require an all-round gap of 5 mm that should be taken into account when cutting the panel to size.
Fasteners D30 require an all-round gap of 5 mm that should be taken into account when cutting the panel to size.
