| Properties of Panel Fastener D30 | |||
|---|---|---|---|
| Line | = | Line D30 | |
| Weight | m | = | 19.2 g |
Height adjuster, PA-GB, grey, similar to RAL 7042
Basic unit, PA-GB, grey, similar to RAL 7042
Button-Head Screw T4x12, St, bright zinc-plated
Square nut DIN 557-M5, St, bright zinc-plated
Basic unit, PA-GB, grey, similar to RAL 7042
Button-Head Screw T4x12, St, bright zinc-plated
Square nut DIN 557-M5, St, bright zinc-plated
Back
The universal fastening for panel elements that are used for panelling, screening and light mechanical loads. Can be applied directly to both Tubes and Profiles D30.
The height adjuster is used when fastening panels that are to run along the outside of tube structures.
The height adjuster is used when fastening panels that are to run along the outside of tube structures.
The universal fastening for panel elements that are used for panelling, screening, splash protection and light mechanical loads. Can be applied directly to both Tubes and Profiles D30.

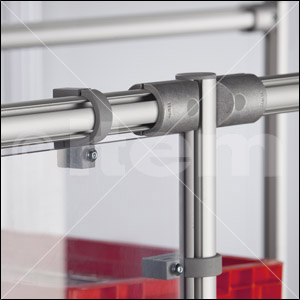

Panel Fastener D30 for a diverse range of fastening options – install panel elements in tube frames or run them along the outside of a tube structure. Using the height adjuster ensures that panels have sufficient clearance from Fasteners.
