Lock System 6-8 enables the use of commercially available mortise locks to DIN 18251 (pin dimension 65 mm) and profile cylinders of locking systems. It is suitable for locking swing and sliding doors from Profiles 6 or 8 and a combination of both Lines. The profile frame does not need to be machined for holding the Lock System.
The screws concealed when the door is locked prevent the Lock System from being dismantled by unauthorised persons.

Its versatile fastening options mean that Lock System 6-8 can be fitted to both right-opening and left-opening doors and to the inside and outside of doors. The lock can be chosen to suit the specific function.

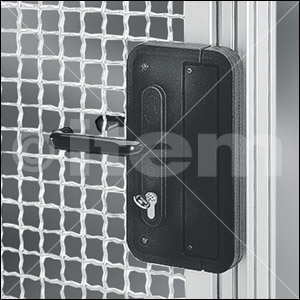

Lock System 6-8 fitted to a sliding door.

Swing door with inner-mounted lock, stop provided by the lock housing rabbet.

The panel element may need to be drilled for fitting door handles and standard cylinder locks. The lock housing contains the preformed openings for the holes.

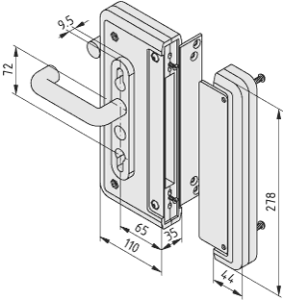

The distance to the edge of the door determines the position of the through holes in the panel element which are required for the door handle and profile cylinder.

The door gap does not depend on the profile line used.

Depending on the thickness of the panel element and frame profile used, it may be necessary to select a longer standard profile cylinder than the one in this catalogue (0.0.458.42).
