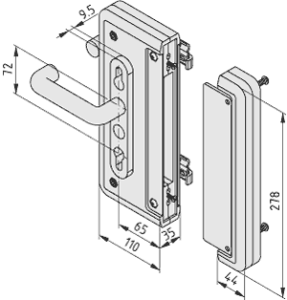

| Properties of Dual-Rod Mesh Lock System | |||
|---|---|---|---|
| Line | = | line 6 line 8 line 12 |
|
| Weight | m | = | 1.74 kg |
Lock housing, PA-GF, black
Lock case, PA-GF, black with nab, St
Lock housing rabbet, St, black
2 door handles, PA, black
4 Dual-Rod Mesh Clamping Elements, St, black
4 Dual-Rod pressed steel plates, St, black
4 sleeves, St, bright zinc-plated
Fastening elements
Notes on Use and Installation
Lock case, PA-GF, black with nab, St
Lock housing rabbet, St, black
2 door handles, PA, black
4 Dual-Rod Mesh Clamping Elements, St, black
4 Dual-Rod pressed steel plates, St, black
4 sleeves, St, bright zinc-plated
Fastening elements
Notes on Use and Installation
Back

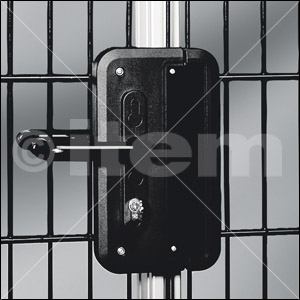

The Dual-Rod Mesh Lock System is used to construct doors in dual-rod mesh protective fences.
The lock housing is screwed in position to the swing door, and the lock case is screw-connected to a rigid mesh element. The lock housing rabbet also serves as a door rabbet and a lock cover. The lock housing can be used with mortise locks that meet DIN 18251 with pin dimension 65 mm (e. g. Swing-Door Lock Order No. 0.0.458.35 with Profile Cylinder 0.0.458.42).
The lock housing is screwed in position to the swing door, and the lock case is screw-connected to a rigid mesh element. The lock housing rabbet also serves as a door rabbet and a lock cover. The lock housing can be used with mortise locks that meet DIN 18251 with pin dimension 65 mm (e. g. Swing-Door Lock Order No. 0.0.458.35 with Profile Cylinder 0.0.458.42).
Thanks to its universal fastening options, the Dual-Rod Mesh Lock System allows left-handed or right-handed fitting. A hole may need to be made in the Dual-Rod Mesh to allow the door handle to be fed through.
The Dual-Rod Mesh Lock System includes all required fixing elements. Clamping Elements and pressed steel plates enable secure mounting on all types of dual rod mesh.
The Dual-Rod Mesh Lock System includes all required fixing elements. Clamping Elements and pressed steel plates enable secure mounting on all types of dual rod mesh.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Profile Cylinder | 0.0.458.42 | 1 pce. |
| Swing-Door Lock | 0.0.458.35 | 1 pce. |
| Sliding-Door Lock | 0.0.458.34 | 1 set |
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Assembly instruction | 23.02.2010 | 468,0 kB | Download |
