| Properties of Coupling Insert D30, blue | |||
|---|---|---|---|
| Material | = | PUR | |
| Property | = | blue | |
| Torque max. | Mmax. | = | 8 Nm |
| Weight | m | = | 5 g |
hardness 80 Sh A
Torque range: MD < 8 Nm
Elasticitydyn. = 0.318 °/ Nm
Elasticitystat. = 0.955 °/ Nm
Perm. offsetaxial = 1.00 mm
Perm. offsetradial = 0.21 mm
Perm. offsetangle = 1.1 °
Torque range: MD < 8 Nm
Elasticitydyn. = 0.318 °/ Nm
Elasticitystat. = 0.955 °/ Nm
Perm. offsetaxial = 1.00 mm
Perm. offsetradial = 0.21 mm
Perm. offsetangle = 1.1 °
Back

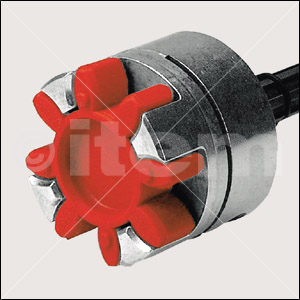

The Coupling Halves are connected to the Coupling Inserts, which exhibit an elasticity that is configured for the item drive elements.
In conjunction with Ball Screw Units driven with stepper motors, the flexible couplings make it possible to decouple the moving masses of the spindle and drive.
