| Properties of Conveyor Roller TR32, Bearing Set, black | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | PA_GF | |
| Property | = | black | |
| Force max | Fmax. | = | 100 N |
| Weight | m | = | 16 g |
ball-bearing support, sealed
2 bearing flanges
2 bearing flanges
Back

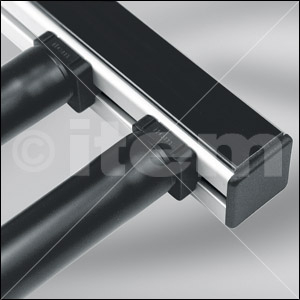

Multifunctional Conveyor Roller ideal for interlinking manual working stations where slim diameter rollers are an advantage. The ball bearing Conveyor Rollers TR32
are simply pushed on and engage in the Bearing Blocks which are screw fitted in the groove of Profiles 8. The distance between the rollers can be selected as a function of the load. A
Conveyor Roller TR32 of any required length can be customized using a Bearing Set and a Tube D32. (Please note load specifications in the table below).
| Product | Article-Id.: | Quantity |
|---|---|---|
| Tube D32 Al, natural | 0.0.472.22 | cut-off max. 3000 mm |
| Tube D32 KU, black | 0.0.472.25 | cut-off max. 3000 mm |
| Conveyor Roller TR32, Bearing Block Set 8 | 0.0.472.04 | 1 set |
