| Properties of Chain 1/2″ | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | St, nickel-plated | |
| Force max | Fmax. | = | 1400 N |
| Weight, spec. Length | m | = | 215 g/m |
Pitch p = 12.7 mm corresponding to ½″
Operating load = max. 1.400 N
Elongation at 1,400 N = 2.5 - 3 ‰
Operating load = max. 1.400 N
Elongation at 1,400 N = 2.5 - 3 ‰
Back

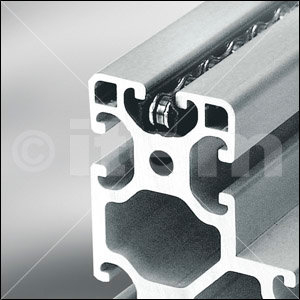

The chain is guided in the profile groove. It can be accessed through the groove and can be used to transfer drive forces.
No connection elements can be fitted in the profile grooves where the chain is run.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Chain Link 1/2″ (removable) | 0.0.465.39 | 1 set |
| Chain Guide Profile 8, transparent | 0.0.463.50 | 1 pce., length 2000 mm |
