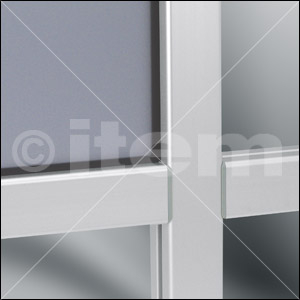

Central-Fastening Set 8Art. No.: 0.0.494.15
Clamping spring, St, stainless
Sleeve with bore, St, bright zinc-plated
Grub screw M10, St, bright zinc-plated
Cap, PA grey
|Delivery Unit||=||1 set|
|Connection Processing, Central-Fastening Set 8||0.0.609.53||1 pce.|
|Step Drill, Mitre Connection 8||0.0.492.60||1 pce.||
|Drilling Jig Mitre Connection 8 D14.2||0.0.493.72||1 pce.||
|Covered enclosure - Article EX-01013All-round protection for working areas with easy access.
|Sliding protective hood - Article EX-01025A visually stunning highlight with extremely practical functions.
|Large guard - Article EX-01087This large guard with sliding doors, swing doors and lifting doors will fit into any hall layout, whether access requirements are for fork-lift trucks, passing materials through a lifting door or carrying out maintenance work through secured doors.
1. Cut a countersink ⌀ 14.2 mm for the fastener sleeve into the side of the profile to be connected on its end face. The distance between the hole and the end face of the profile is 12 mm and the depth of the countersink 26.7 mm.
Use of item Drilling Jig 0.0.493.72 and Step Drill D14.2 (Art. No. 0.0.492.60) is recommended.
(⌀ 8.2 mm; 20 mm deep). The bore must then be deburred.
⌀ 14.2 mm, introduce the clamping pin and make the profile connection.
The hole to accommodate Central-Fastening Set 8 should be produced with Step Drill D14.2 (0.0.492.60).
* When using Radius Seals in combination with Central-Fastening Set 8, the distance between the hole and the end face of the profile should be reduced from 12 mm to 11 mm.
