| Properties of Automatic-Fastening Set 5, stainless | |||
|---|---|---|---|
| Line | = | line 5 | |
| Property | = | stainless | |
| Torque, stainless | Mstainl. | = | 2.5 Nm |
| Weight | m | = | 8 g |
Automatic Fastener 5, St
Screw M4x30, St
T-Slot Nut 5 St M4
s = 4 A/F
a = 6.8 mm
Screw M4x30, St
T-Slot Nut 5 St M4
s = 4 A/F
a = 6.8 mm
Back

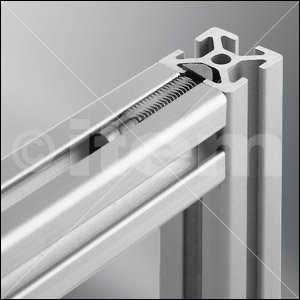

For universal power-lock connection of all profiles of one Line. Suitable for profiles which need to be moved subsequently, since the Fasteners are only screwed into one profile. These Fastening Sets can be installed easily into existing constructions. The profiles do not need to be machined in order to use the Automatic-Fastening Sets.
The Fastener is screwed into a profile groove in the end face, the thread being cut automatically. Use of a lubricant is recommended.
Note: All Fasteners with a through bore for the fastening screw have a counter-clockwise thread on the outside in order to prevent the Fastener twisting when the
screw is tightened.
L-Keys from item are the ideal tool for tightening the screws of the Automatic-Fastening Set (tightening torque M).
Automatic-Fastening Sets should always be used in pairs.
Automatic-Fastening Set 5 should be inserted so that the flattening on the thread is flush with the outer edge of the profile.
| Tools | Article-Id.: | Quantity |
|---|---|---|
| Key with T-Handle 4 A/F | 0.0.406.39 | 1 pce. |
| Ball-Headed Key 3 A/F | 0.0.370.58 | 1 pce. |
| L-Key 3 A/F | 0.0.440.73 | 1 pce. |
