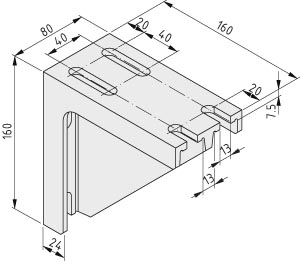

| Properties of Angle Bracket 8 160x160 St M12, white aluminium, similar to RAL 9006 | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | High-strength cast iron | |
| Property | = | white aluminium, similar to RAL 9006 | |
| Weight | m | = | 2.20 kg |
Back

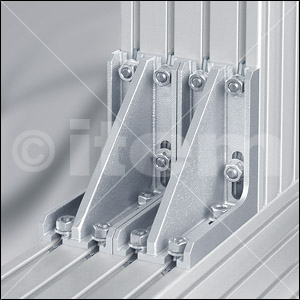

Angle Bracket 8 St are heavy-duty fastening elements for power-lock, non-machined connection of large Profiles 8 320x160 or Profiles 8 160x160 with innovative
screw technology. They can also be used for screwing profiles to floors and walls and for fastening heavy parts that are not part of the MB Building Kit System.
Angle Bracket 8 160x160 St M8 is fastened to the profile with the Fastening Set. Depending on the combination of profiles, up to 4 Fastening Sets may be required
for each Angle Bracket.
Angle Bracket 8 160x160 St M12 is used for screw attachment with Fasteners 8 M12 (Section 3.2 Screws and Universal-Elements). A particulary heavy-duty
connection is possible for the profiles by using an M12 bolt with
Profile 8 grooves. Alternatively, Angle Bracket 8 St M12 can also be screw attached using bolts and T-Slot Nuts 8 St M8.
Profile 8 grooves. Alternatively, Angle Bracket 8 St M12 can also be screw attached using bolts and T-Slot Nuts 8 St M8.
| Product | Article-Id.: | Quantity |
|---|---|---|
| Fastener 8 M12 | 0.0.473.02 | 1 set |
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Technical documentation | 23.02.2010 | 174,3 kB | Download |
