| Properties of Angle Clamp Bracket 6 with Clamp Lever | |||
|---|---|---|---|
| Line | = | line 6 | |
| Weight | m | = | 103 g |
Die-cast zinc, RAL9006 white aluminium
1 T-Slot Nut 6 St M6, bright zinc-plated
1 clamp lever M6x32, black
1 sleeve, St, bright zinc-plated
1 T-Slot Nut 6 St M6, bright zinc-plated
1 clamp lever M6x32, black
1 sleeve, St, bright zinc-plated
Back
The Angle Hinge Bracket serves as a fixed point of rotation for profiles crossing each other. When the screws are tight, the rotational position around the bearing
bush can still be selected at will.

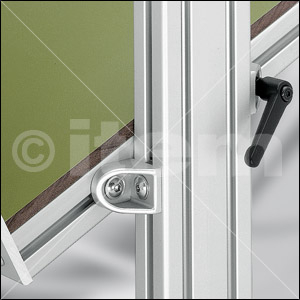

The Angle Clamp Bracket can be used in combination with an Angle Hinge Bracket or a second Angle Clamp Bracket to provide a simple connection between two crossing profiles.
Loosening the screw or clamp lever releases the tension in the two profile grooves and allows rotation at any angle and movement along the grooves.
Combination of Angle Hinge Bracket and Angle Clamp Bracket, e.g. for adjusting the angle of a shelf around a fixed point of rotation.
Combination of two Angle Clamp Brackets, e.g. for adjusting a rest (in terms of height, lateral location and angle).
| Description | Date | Filesize | ||
|---|---|---|---|---|
 |
Technical documentation | 23.02.2010 | 174,3 kB | Download |
