| Properties of Castor D100 swivel 120x40 | |||
|---|---|---|---|
| Line | = | line 8 line 10 line 12 |
|
| Weight | m | = | 641 g |
Steel sheet casing bright zinc-plated, black
Swivelling axis with sealed ball bearing,
Wheel axle with sealed ball bearing,
Dust shield, carrying capacity 80kg/castor
Tyre TPE, track-free, 80 Sh A, grey
Swivelling axis with sealed ball bearing,
Wheel axle with sealed ball bearing,
Dust shield, carrying capacity 80kg/castor
Tyre TPE, track-free, 80 Sh A, grey
Back

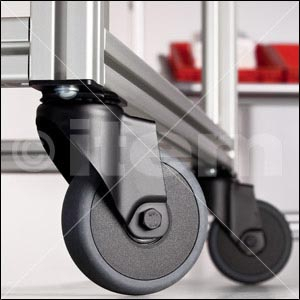

A version of item Castors D100 swivel are supplied with integrated connecting plates. As a result, the swivel castors can be secured in place without the need for additional base plates or transport plates. The three holes in the modular dimension of 40 mm in the connecting plate are used to screw the castors to the profile grooves or the core bore of Profiles 8.
The swivel castors with connecting plate are ideal for use with frames built from Line 8 and Line 10 profiles. They are the same height as the swivel castors with fixing holes and can also be combined with fixed castors in the corresponding castor size.
All the designs are also available in antistatic/electrostatically dissipative versions for ESD applications.
Recommended screws for fastening to the profile groove:
| Product | Article-Id.: | Quantity |
|---|---|---|
| Button-Head Screw M8x14, bright zinc-plated | 8.0.000.18 | 1 pce. |
| Button-Head Screw M8x18, bright zinc-plated | 8.0.000.02 | 1 pce. |
| Button-Head Screw M8x20, bright zinc-plated | 8.0.009.11 | 1 pce. |
| T-Slot Nut 8 St M8, bright zinc-plated | 0.0.026.18 | 1 pce. |
| T-Slot Nut 10 St M8, bright zinc-plated | 0.0.625.04 | 1 pce. |
| T-Slot Nut 12 St M10, bright zinc-plated | 0.0.003.64 | 1 pce. |
