| Properties of Double-Lip Seal 8 4-6mm, grey similar to RAL 7042 | |||
|---|---|---|---|
| Line | = | line 8 | |
| Material | = | TPE | |
| Property | = | grey similar to RAL 7042 | |
| Weight, spec. Length | m | = | 50 g/m |
a = 4.0 - 6.0 mm
Back

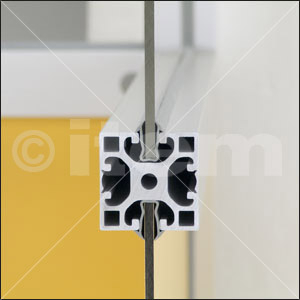

Double-Lip Seal 8 is used for fitting panel elements directly into grooves of Profiles 8. It provides a sealing function and prevents direct contact with the aluminium profile. Double-Lip Seal 8 completely encloses panel elements of thickness 4 to 6 mm in the profile groove.
Double-Lip Seal 8 4-6mm is ideal for all types of panel elements ― including those made of plastic or safety glass.
N.B.: Double-Lip Seal 8 is best installed using soapy water. It is then slipped onto the panel element and pushed into the profile groove. The profile frame is assembled around the panel element.
